What Size Screws Do You Need for Deep Drawer Box Hardware?
Determining exactly what size screws do you need for deep drawer box hardware is a critical step in ensuring your cabinetry remains functional and secure over time. Because deep drawers carry significantly more weight than standard utility drawers, the mechanical stress placed on the slides and mounting brackets is substantial. If you select fasteners that…
Determining exactly what size screws do you need for deep drawer box hardware is a critical step in ensuring your cabinetry remains functional and secure over time. Because deep drawers carry significantly more weight than standard utility drawers, the mechanical stress placed on the slides and mounting brackets is substantial. If you select fasteners that are too short, they will eventually pull out of the wood under the weight of heavy pots or pantry goods.
Conversely, screws that are too long can puncture the drawer box or damage the outer cabinet finish. This article provides the specific guidance you need to choose the correct hardware for your installation.

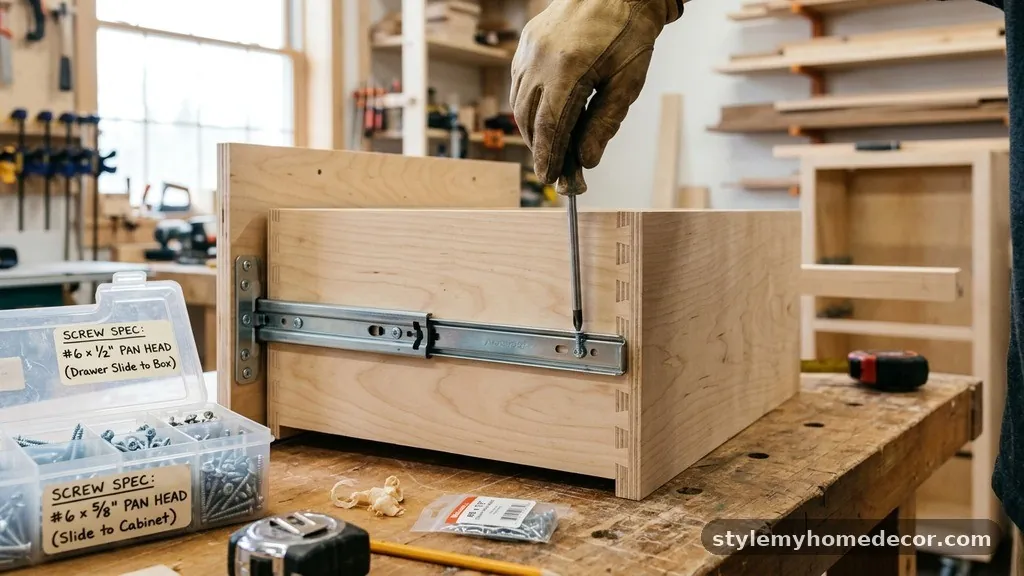

The Standard Screw Specification
For most deep drawer installations, you should use #6 or #8 pan-head wood screws with a length of 1/2 inch to 5/8 inch. This size range is the industry standard for attaching drawer slides to the side of the drawer box without penetrating through the material.
If your drawer box side is constructed from standard 1/2-inch or 5/8-inch plywood, a 1/2-inch screw offers the best balance of penetration and safety. Always verify the thickness of your specific drawer material before purchasing, as using a screw that is too long will cause a protrusion that can catch on items inside the drawer.
Understanding Thread Types and Materials
The type of thread you choose is just as important as the length when installing hardware into wood. You should prioritize coarse-thread screws for particleboard or softwoods, as these provide a better bite and prevent the fastener from stripping the pilot hole.
If you are working with high-density hardwoods like maple or oak, a finer thread can be more effective at holding without splitting the grain. Ensure that your screws are made of zinc-plated or hardened steel to prevent snapping under the shear force common in deep, heavy-duty applications.

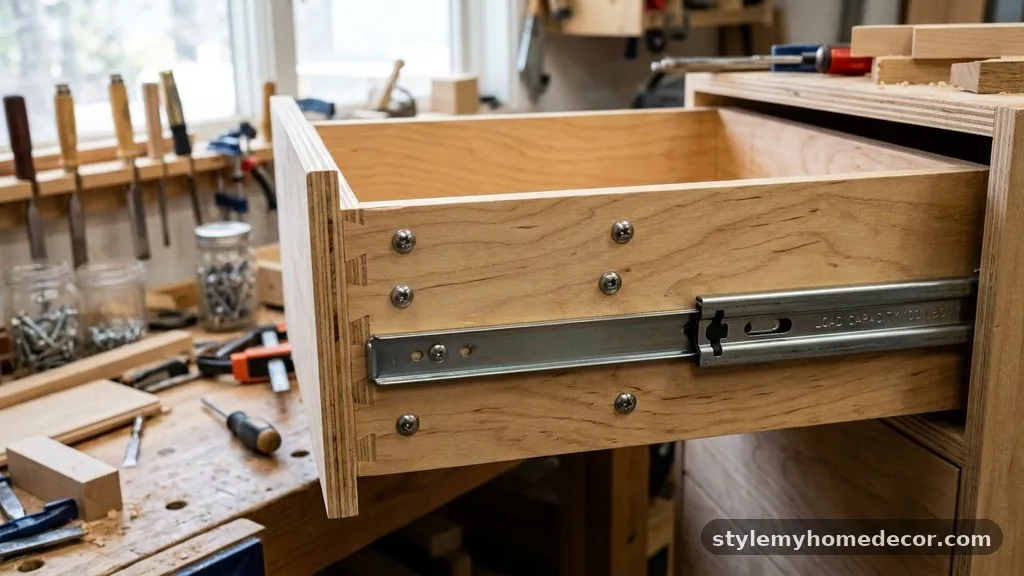

Evaluating Load Capacity and Shear Strength
Deep drawers often house heavy items like cast iron cookware or small appliances, which increases the load significantly. When you consider what size screws do you need for deep drawer box hardware, you must account for the shear strength of the fastener.
A #8 screw generally offers more shear resistance than a #6 screw, making it the preferred choice for heavy-duty ball-bearing slides. If the manufacturer of your slides specifies a particular screw gauge, always defer to their engineering data to maintain the warranty and structural integrity of the unit.
The Role of Pilot Holes
Never drive a screw directly into the side of a drawer box without first drilling a pilot hole. A pilot hole reduces the internal tension on the wood fibers, which prevents the material from cracking or splitting during the tightening process.
For a standard #6 screw, use a 1/16-inch or 5/64-inch drill bit to create the starter hole. This ensures the screw threads can grip the wood effectively without causing the surrounding fibers to expand and weaken the connection over time.

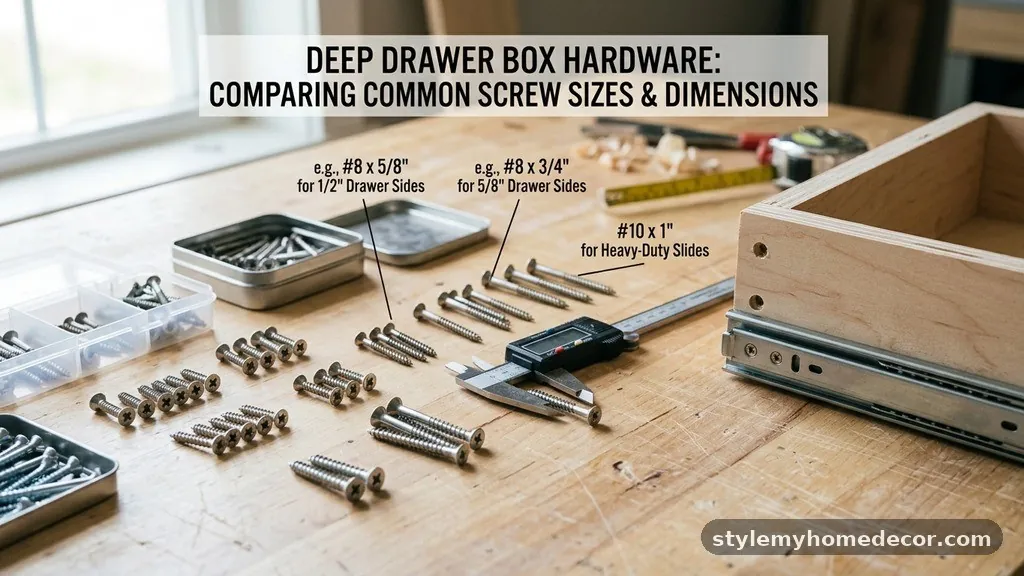

Comparing Common Fastener Dimensions
Selecting the right dimensions depends on the specific part of the hardware you are securing. The table below outlines common applications for various screw sizes found in cabinet hardware assembly.
| Application | Recommended Gauge | Typical Length |
|---|---|---|
| Drawer Slide to Cabinet Wall | #8 | 3/4 inch |
| Drawer Slide to Drawer Box | #6 | 1/2 inch |
| Cabinet Knob/Pull Attachment | 8-32 Machine Screw | 1 inch to 1 1/2 inch |
| Hinge Mounting Plate | #6 | 5/8 inch |
Working with European-Style Slides
Modern kitchen cabinetry frequently uses under-mount or side-mount European slides that require specific fasteners. These systems often utilize Euro screws, which feature a wider shank and a specialized thread profile designed for pre-drilled 5mm holes. If your cabinet carcass has these pre-drilled holes, you should avoid standard wood screws, as they will not seat correctly and may damage the internal mechanism. Always check the slide manufacturer’s documentation to see if they provide specific hardware kits for their system.
Avoiding Common Installation Pitfalls
One frequent mistake is over-tightening screws with a high-torque power drill. This often leads to stripped holes, which renders the connection useless and requires you to move the slide to a new position. Use a manual screwdriver for the final few turns to ensure the screw head is flush with the slide without excessive pressure. If you find a hole has been stripped, you can repair it by inserting a small wooden dowel with glue, allowing it to dry, and then drilling a new pilot hole.
Considerations for Drawer Fronts
Attaching drawer fronts to deep drawer boxes requires a different approach than attaching the slides themselves. You typically need longer screws to pass through the drawer box wall and into the solid wood of the drawer front. Ensure that you use a screw that is long enough to gain at least 3/4 inch of purchase into the front panel. Using a screw that is too short here will result in the drawer front pulling away from the box when you pull on the handle.

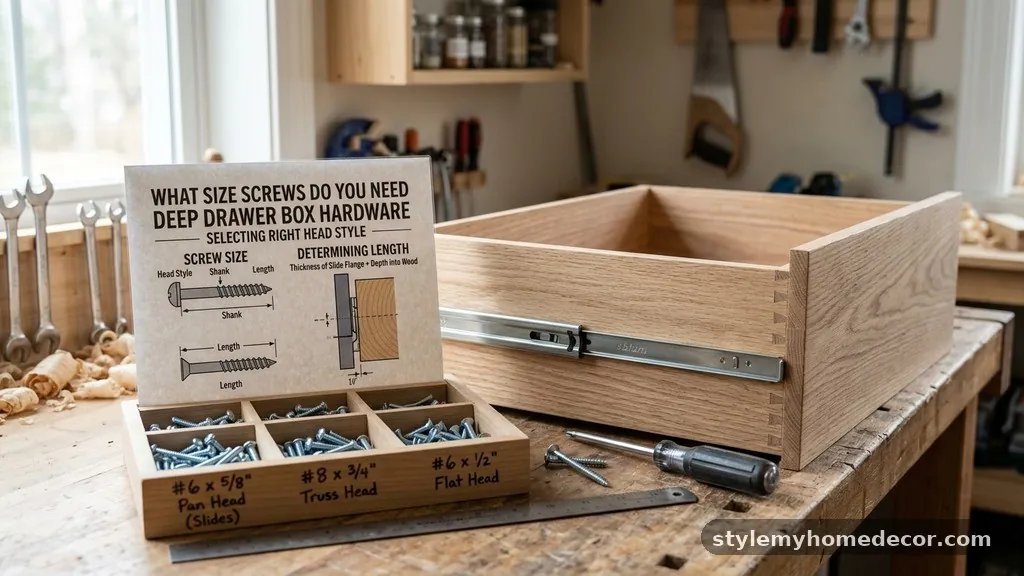

Selecting the Right Head Style
The head style of the screw determines how the slide sits against the drawer box. A pan-head screw is the preferred choice for most drawer slide applications because the flat underside of the head sits flush against the metal mounting tab. Avoid using countersunk flat-head screws unless the slide specifically features a countersunk hole, as the incorrect head shape can cause the slide to sit at an angle. A flush fit is essential for the smooth operation of the ball-bearing or soft-close mechanism.
Essential Tools for Hardware Installation
Having the right tools on hand makes the process of installing deep drawer hardware much more efficient. You should have a set of high-quality drill bits, a depth stop to prevent over-drilling, and a magnetic bit holder for your driver. A simple square or measuring tape is also necessary to ensure that your slides are mounted at an identical height on both the left and right sides of the cabinet. For more information on woodworking standards, you can consult the Association of Woodworking & Furnishing Suppliers.
Frequently Asked Questions
Is a #8 screw stronger than a #6?
Yes, a #8 screw has a larger diameter and thicker shank than a #6 screw. This gives it higher shear strength, making it better suited for the high-load requirements of deep drawer boxes.
What should I do if my screw is too long?
If a screw is too long and protrudes into the drawer space, you should remove it immediately. Replace it with a shorter screw or add a washer if the protrusion is minimal, though replacing the screw is the safest structural choice.
Can I use drywall screws for drawer slides?
You should avoid using drywall screws for cabinet hardware. They are brittle and prone to snapping under the weight of a drawer, and their head profile is not designed for the metal mounting holes found on drawer slides.
How many screws are needed per slide?
Generally, you should use at least three to four screws per slide for a standard-sized drawer. For deep, heavy-duty drawer boxes, ensure every factory-provided mounting hole on the slide is utilized for maximum support.
Do I need to use a drill for every screw?
You should always drill a pilot hole for every screw to prevent the wood from splitting. While you can drive the screws in by hand, a drill with a torque-limiting clutch helps ensure you don’t strip the wood fibers.
Ensuring Long-Term Durability
Properly selecting what size screws do you need for deep drawer box hardware is a foundational aspect of cabinet longevity. By using the correct gauge and length, you ensure that your drawers can handle their full weight capacity without mechanical failure. Always inspect your drawer hardware annually to ensure that no screws have backed out due to vibration or heavy use. If you notice a loose screw, tighten it immediately or replace it to prevent the slide from sagging, which can lead to further damage to the cabinet interior. Taking the time to choose the right fasteners now will save you from complex repairs later on.
